For copper pipe work, compression fittings offer a dependable way to connect tubing without using solder. These connectors are widely used by trade professionals and homeowners because they make repairs faster and easier. A typical assembly includes a fitting body, a compression ring or ferrule, and a compression nut. This nut tightens against the ferrule, producing a leak-resistant seal.

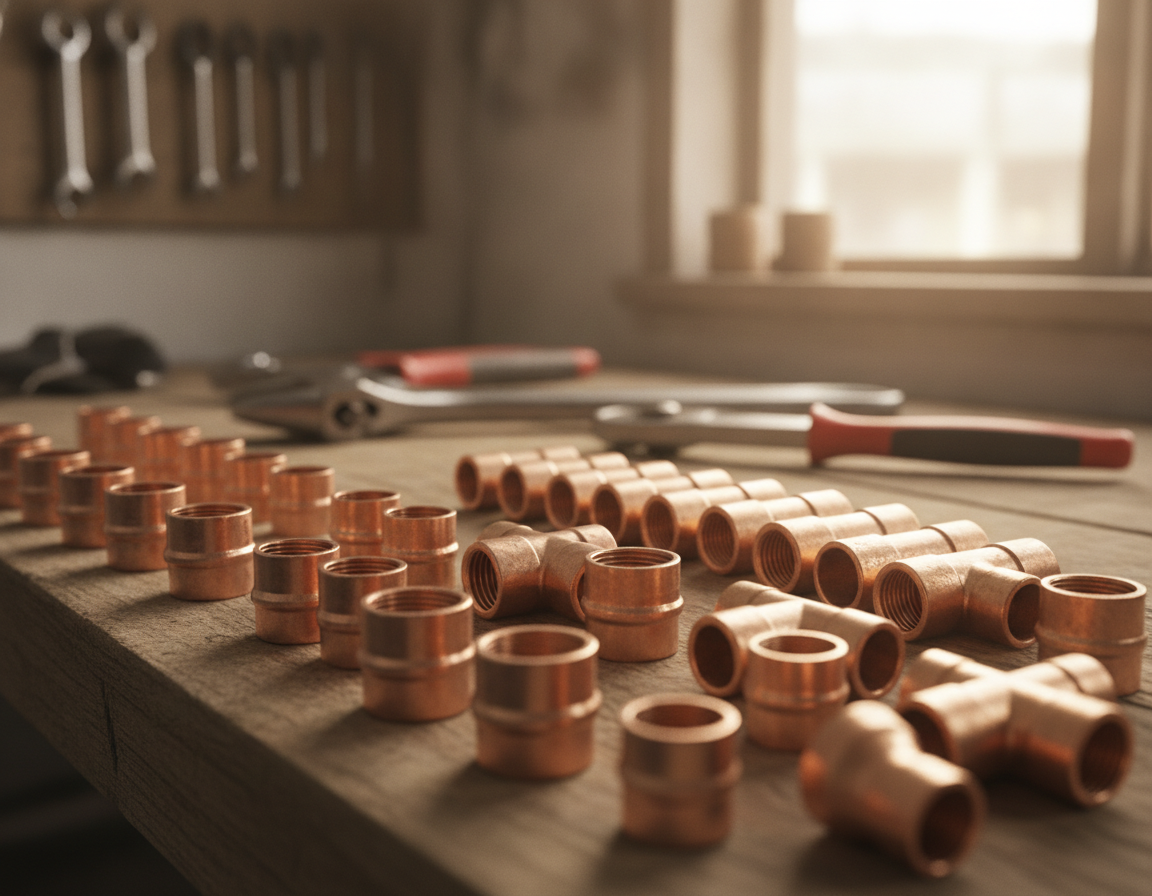

T Compression Fitting
To support a successful installation, follow a few essential best practices. Begin with straight cuts and remove burrs from the tube end. Next, inspect the end for any damage. After assembly, hand-tighten the nut before using a wrench for final tightening. Use two wrenches so the fitting body is held steady and the pipe does not twist. Avoid overtightening, and never reuse a ferrule that has already been compressed if you want a dependable, leak-free joint.
In many jobs, compression fittings are preferred instead of soldered connections. They remove the need for a flame and are reusable in many scenarios. One major benefit is that they can be installed more easily in confined or awkward spaces. However, they are bulkier than soldered joints and may not be ideal in high-stress locations or hidden areas that are hard to inspect. For best results, use matched parts and follow the manufacturer’s torque or turn-count instructions.
- Compression fittings join copper tubing without solder or flame.
- The primary parts are the fitting body, ferrule or olive, and compression nut.
- Prepare tubing with square cuts and deburring for reliable seals.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Choose brass or compatible materials and follow manufacturer guidance.
What Are Compression Fittings And How They Work
A compression fitting joins tubing without requiring solder, flame, or heat. They use a basic threaded connection. As it tightens, the connection drives a ring against the pipe and creates a seal. They are especially valuable in confined areas and field repairs where a fast, dependable connection is needed.
Main Components
The main pieces are the fitting body, the ferrule, and the tightening nut. The fitting body holds both the seating area and the threads. The ferrule, also called an olive, is positioned between the compression nut and the pipe. When the compression nut threads onto the body, it drives the ferrule into position.
Sealing Principle
The seal is created through radial compression. As the compression nut is secured, the ferrule moves axially into the tapered bore of the body. This motion forces the ferrule to deform slightly and press against the tubing outer diameter.
This creates a line-contact seal that secures the tubing and helps resist leakage. The ferrule’s shape and material have a significant effect on seal performance when pressure or temperature changes.
Common Industry Names And Variations
Across trades, the same fitting style may be described with different names. In plumbing supply and HVAC catalogs, terms such as compression joint, compression couplings, and compression nut are common. In instrumentation work, vendors list compression joints and compression fittings plumbing alongside flare and push-fit options.
| Term | Common Use | Key Feature |
|---|---|---|
| Compression fitting nut | Plumbing and gas lines | Tightening action compresses the ferrule |
| Compression ring | HVAC, refrigeration, instrumentation | Compresses to grip and seal the tube |
| Compression connection | Service repairs and pipe connections | No-solder assembly, reusable in many cases |
| Compression couplings | Extending or joining tubing runs | Two-ended compression seal |
| Compression fittings plumbing | General plumbing installations | Many materials, shapes, and sizes |
Copper Tube Compression Fitting Guide
Material selection is critical to compression-joint performance. It impacts performance, durability, and the risk of corrosion. Copper fittings are usually a natural match for copper tubing. They share thermal expansion properties and support consistent metal contact.
Brass compression fittings also offer helpful ductility. That ductility helps the fitting form a reliable seal without unnecessarily damaging the tube.
Stainless steel compression fittings are ideal for high-pressure or high-temperature systems. They also handle many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They avoid metal-to-metal contact, which can cause dissimilar-metal issues.
Materials should be matched to the job, pressure rating, temperature, and fluid type. For refrigeration and some plumbing, copper or brass parts are preferred. These materials help reduce mixed-metal stress. For applications requiring high mechanical strength, stainless steel is a more suitable choice. Just remember, its harder ferrules can deform soft tubing if not sized correctly.
With copper tubing, avoid pairing the line directly with carbon steel or other incompatible metals. Galvanic corrosion can quickly accelerate deterioration where the metals meet. This reduces the service life. When mixed metals cannot be avoided, use dielectric unions, insulating sleeves, or compatible transition materials to reduce electrical contact.
Before assembling, check the tubing’s finish and wall rigidity. A proper surface quality ensures ferrules bite evenly and form a lasting seal. Always follow the manufacturer’s guidance for material compatibility. This limits leaks and increase the life of the joint in the field.
Types And Sizes Of Compression Tee And T Fittings For Copper Tubing
Choosing the right compression tee is essential, influenced by flow needs, space constraints, and tubing sizes. These fittings are widely used in plumbing, refrigeration, and instrumentation. Ensuring a proper fit between ferrule geometry and body taper is necessary to preventing leaks.
Compression Tee Variants For Tight Spaces
Straight tees allow flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees install into tight spaces where standard tees won’t. They support common residential sizes, including Compression Tee 1/2.
Common Size References And Cross-Fit Options
Installers often order parts by nominal tube OD. The 1/4 Compression T Fitting and 1/2 Compression T Fitting are common. For small-diameter tube runs, the 1 4 Tee is often used. Larger branches often call for 1/2 Inch Compression Fitting or 1/2 OD Compression Fitting options. Cross-fit adapters, like 1/2 X3/8 or 3/8 X 1/2 Compression Fitting, allow mixing sizes when needed.
Mixed-Size Tees And Adapter Choices
Combination tees, such as the 1/2 X 1/2 X 3/8 Tee, handle transitions between sizes. A 1/2 X3/8 adapter steps a 1/2 line down to a 3/8 branch. The 1 2 To 1 4 Compression Fitting creates a compact step-down for sensors or instrumentation taps.
Choosing Brass Tee And T Joint Fittings
Brass is often selected for copper tubing because it offers corrosion resistance and compatible thermal expansion. For durable connections, look for T Brass Fitting options. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Fitting Type | Usual Application | Common Size Labels | Material Guidance |
|---|---|---|---|
| Straight Tee | Main run with branch inline | Compression Tee 1/2, 1 4 Tee | Brass works well for copper tubing |
| Branch Tee | Side outlet from main pipe | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Match ferrules with fitting bodies |
| Low-Clearance Tee | Confined locations and wall spaces | Compression Tee 1/2, 1/2 Inch Compression Fitting | Short body length, same sealing principle |
| Mixed-Size Tee | Branch reductions and instrument taps | 1/2 X3/8, 1/2 X 1/2 X 3/8 Tee, or 3/8 X 1/2 Compression Fitting | Step-down adapters are available for small branches |
| Brass T Joint | Durable copper-compatible branches | 1/2 Brass Tee and T Brass Fitting | Matches copper; check pitch and taper |
When To Use Compression Fittings Vs Soldering Or Other Methods
The best joining method depends on the job conditions, code requirements, and fitting capability. Compression fittings work well in confined areas or near flammable materials because they require no flame. Soldering, on the other hand, is better for forming a lasting bond in visible, permanent installations.
Why Compression Fittings Help In Tight Spaces
Flame-free fittings are helpful for emergency repairs and retrofits because they avoid torches and may reduce hot-work concerns. They usually need only basic hand tools, which makes them useful for fast repairs. Reusing these fittings is sometimes practical in systems with low stress, which is beneficial for testing or replacing sections.
Durability Limits And Fitting Profile Issues
Compared with soldered joints, compression fittings are bulkier. Once ferrules bite into the tube, fittings can be difficult to remove and reuse. Over time, vibration or pulsation can make fittings to loosen, making soldered or brazed connections more suitable for high-stress applications.
Application Selection Guide
For plumbing repairs in tight spaces, compression fittings are useful when a no-flame connection is needed. For visible runs where appearance is important, soldering is the better choice.
In some gas-line work, compression fittings may be used for short runs. Always check local codes and use approved materials. Inspect joints regularly so safety is maintained.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. For heavy thermal cycling, brazed or flare connections may last longer than compression fittings. Compression fittings, like a Compression Tee Fitting or T Compression Fitting, are appropriate for service taps and temporary connections.
For instrumentation, select fittings that provide leak-tight, high-pressure, or high-purity lines. Stainless-steel compression options are excellent, but confirm they meet pressure and media ratings before installation.
| Factor | Compression Connection | Solder Or Braze |
|---|---|---|
| Tools Required | Wrenches, minimal tools | Torch, flux, solder or filler |
| Speed | Fast for repairs | Slower due to heating and cooling |
| Joint Size | Larger visible profile | Slimmer finished appearance |
| Reusability | Sometimes reusable, but ferrules limit reuse | Permanent bond not intended for reuse |
| Dynamic Stress Performance | Can loosen under vibration if unsupported | High; rigid joints |
| Usual Jobs | Plumbing repairs, gas lines, HVAC service tees | Permanent plumbing runs, aesthetic installations |
Match the fitting type to the system’s needs, adhering to pressure, temperature, and material compatibility guidelines. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are appropriate for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Installation Best Practices For Reliable Joints
A reliable installation starts with careful preparation and a clear assembly sequence. Every step matters because poor preparation can cause leaks or damage. This guide will explain installing compression fittings on copper tubing and when to seek parts or tools from Installation Parts Supply.
Preparing copper tubing correctly is essential for a good seal. Cut the tube squarely with a tubing cutter, then remove burrs with a reamer or deburring tool. Check the tube end for nicks, scratches, dents, or deformation. Before assembly, clean the tube and inspect the fitting body, nut, and ferrule for damage.
Start by sliding the nut onto the pipe with the threads facing the tube end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut, then use a wrench to align the parts before applying final torque.
Correct tightening is key to a secure seal. Use two wrenches to hold the fitting body while tightening the nut. Follow the manufacturer’s turn-based instructions instead of relying only on torque readings. Do not over-tighten, because too much force can flatten the ferrule and cause leaks.
Replacement ferrules are often needed after disassembly. Once an olive or ferrule has been compressed, it should not be reused. If a ferrule is stuck, use a ferrule puller or carefully cut and remove it to avoid damaging the fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If necessary, tighten incrementally. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Design And Ferrule Details That Affect Performance
The choice of ferrule significantly impacts a compression joint’s performance under pressure and over time. Both one-piece and two-piece ferrules have benefits, limitations, and installation considerations. Ferrule design must match the tubing material, tube size, and fitting body geometry to create a secure, lasting seal.
Ferrule shapes and materials
Brass and stainless steel are the most common materials for ferrules. For applications requiring chemical resistance or high-temperature tolerance, graphite or specialty alloys are used. A single-piece ferrule is more straightforward to install and works well with softer copper tubing. On the other hand, a two-piece ferrule includes a rear ferrule, preventing rotation and galling, which is essential for stainless systems.
Choosing asymmetrical or symmetrical ferrules
An asymmetrical ferrule is installed in a specific orientation, ensuring consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Seal geometry: line-contact versus surface-contact seals
Ferrule shape determines whether the seal is mainly line-contact or surface-contact. Line-contact seals often resist creep and vibration better. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tube quality and material behavior considerations
Metal tubing must have smooth walls and precise cuts to ensure proper ferrule seating. Copper tubing from coils can have slight shape irregularities that influence sealing. Soft plastics and PTFE exhibit cold flow and creep under compression, leading to a loss of seal integrity over time.
Reducing PTFE cold flow and soft tubing problems
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules can also help distribute the load. In high-pressure or high-purity systems, choose materials and approved lubricants that limit galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Troubleshooting Compression Fittings And Avoiding Common Mistakes
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Minor leaks often come from under-tightening, poor tube seating, or a mis-seated ferrule. To avoid damaging the tubing, stabilize the fitting body with one wrench while tightening the nut with another.
Problems from overtightening can create pipe deformation, crushed ferrules, and persistent leaks. Over-tightening can damage the copper tubing or flatten the ferrule, leading to a poor seal. When tubing is flattened or a ferrule is gouged, cut back the tube and install a new ferrule and nut.
Under-tightening can leave a small gap that allows slow seepage. For small weeps, tighten in small increments with a wrench until the leak stops. Use gradual tightening to avoid over-compressing the ferrule while still achieving a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Ensure the tubing enters the fitting straight and fully. If the ferrule is misaligned, it can jam or become difficult to remove. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks starts with checking ferrule seating, tube condition, and fitting parts. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling calls for corrective repair and preventive material selection. Corrosion can pit sealing faces and cause repeat leaks. Galling can lock nuts and bodies, making them difficult to remove. Apply penetrating oil to stuck nuts and allow time for soaking. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Correct material selection helps prevent corrosion, galling, and premature failure. Do not pair carbon steel directly with copper if galvanic reaction is a concern. Choose ferrules and fittings suited to the system’s chemistry, pressure, and temperature. In cleanroom or high-purity environments, volatile cleaning agents can increase galling risk; use ferrules designed to resist galling and compatible lubricants when allowed.
Stuck nut recovery often begins with penetrating oil and patience. If the nut won’t budge, cutting and replacing the nut and ferrule may be faster than prolonged attempts. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, consider alternatives. Systems exposed to constant vibration, long-term dynamic stress, or strict low-profile needs may benefit from soldering, mechanical crimp systems, flare fittings, or welded joints. Compare soldering vs compression for permanence, profile, and code requirements when planning a repair or new installation.
| Problem | Likely Cause | First Action | Long-term Solution |
|---|---|---|---|
| Slow leak | Under-tightened nut or mis-seated ferrule | Incremental tightening with two wrenches | Replace ferrule and nut; re-cut tube end |
| Ongoing leak despite tightening | Ferrule or tube damaged by excessive force | Cut back tubing, fit new ferrule and nut | Use manufacturer tightening guidance every time |
| Seized ferrule or nut | Galling or ferrule swaging | Penetrating oil; use ferrule puller or cut off | Install new parts and select anti-galling materials |
| Corroded compression joint | Galvanic reaction or aggressive fluids | Replace corroded parts | Use compatible metals and follow applicable codes |
| Vibration-related joint failure | Movement or vibration loosens the joint | Support lines and reduce movement | Use a joining method better suited to vibration |
Final Thoughts
Copper Tubing Compression Fittings conclusion: compression fittings offer a flexible, flame-free solution for copper tubing in various fields. They work well when materials are matched and installation techniques are followed correctly. Brass, copper, stainless steel, and some plastics can be compatible when galvanic corrosion and thermal mismatch are avoided.
The Installation Parts Supply guide recommends replacing ferrules during reassembly and ensuring fittings are tightened to manufacturer specifications. This helps maintain reliable sealing.
Choose compression fittings for fast repairs, confined spaces, and removable joints. They do have limits when compared with soldered joints. Long-term performance depends on ferrule design, tubing quality, and correct assembly sequence.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. When compression fittings are not suitable, consider soldering, brazing, crimping, flaring, or welding.
This summary highlights the value of careful installation and routine inspections. Ensure cuts are square and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For matching parts and compatible ferrules, check with qualified suppliers. Look for suppliers that carry 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options suited to the project.
