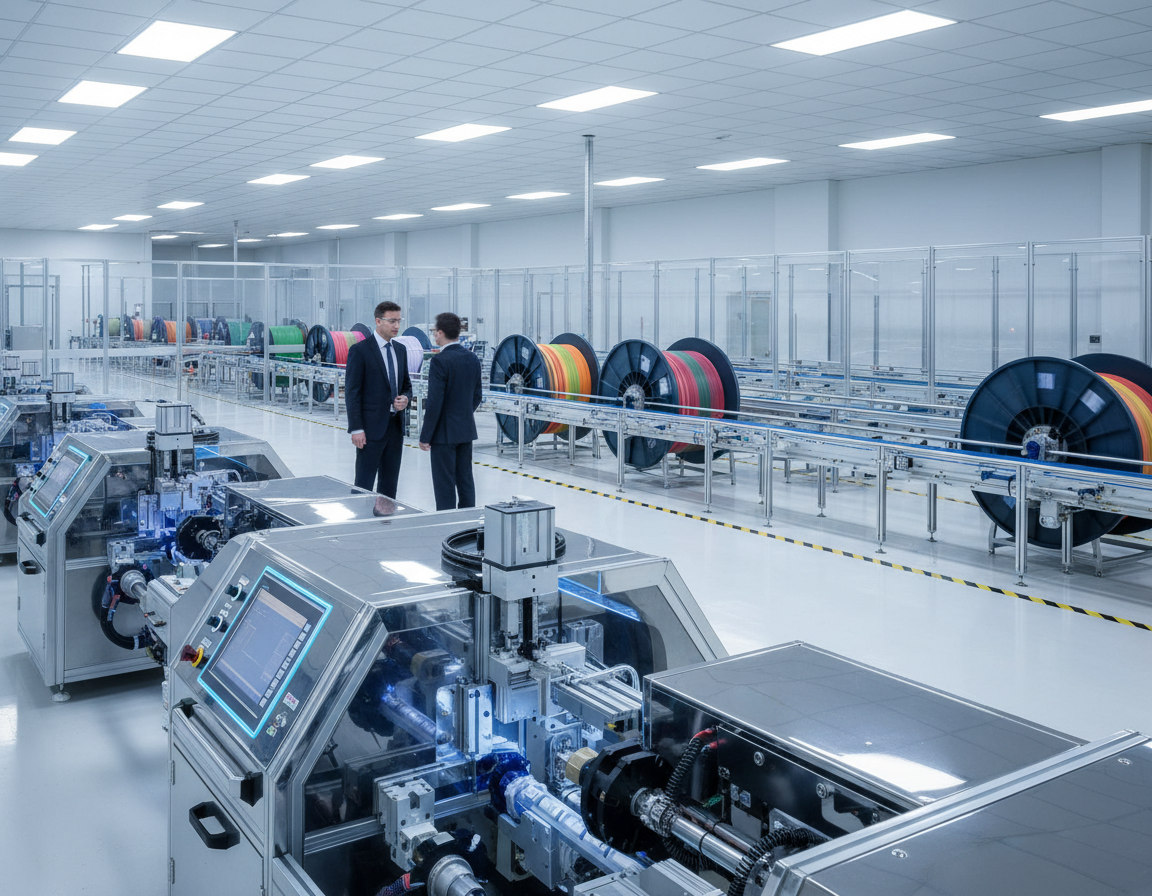

SZ stranding lines

FTTH Cable Production Line Technology Explained

The fiber optic cable line output process for FTTH requires precise control at every stage. Producers rely on integrated lines that combine drawing, coating, stranding, as well as sheathing. That setup boosts yield as well as speeds up market entry. The line meets the needs of both residential as well as enterprise deployments in the United States.

Below, we outline the core components together with technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. This choice of equipment shapes product consistency, cost, together with flexibility for various cable designs.

Modern Fiber Optic Cable Manufacturing Components

Secondary coating lines apply dual-layer coatings, often 250 µm, using fast-cycle UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor as well as drop cables.

SZ stranding lines use servo-controlled pay-off and take-up units to handle up to 24 fibers with accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.

Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.

Evolution From Traditional To Advanced Production Systems

Early plants used manual and semi-automatic modules. Lines were separate, using hand transfers as well as basic controls. Current facilities now rely on PLC-controlled, synchronized systems using touchscreen HMIs.

Remote diagnostics and modular turnkey setups enable rapid changeover between simplex, duplex, ribbon, together with armored formats. This move supports automated fiber optic cable line output as well as reduces labor dependence.

Key Technologies Powering Industry Innovation

High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during high-speed runs. Multi-zone temperature control using Omron PID and precision heaters ensures consistent extrusion quality.

High-speed UV curing and water cooling improve profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.

Operation Typical Equipment Benefit
Fiber draw process Draw tower with closed-loop tension feedback Uniform core size and low attenuation
Fiber secondary coating Dual-layer UV curing coaters Uniform 250 µm coating for durability
Identification coloring Multi-channel fiber coloring machine Accurate identification for splicing and installation
Fiber stranding SZ stranding line, servo-controlled (up to 24 fibers) Consistent lay length for ribbon and loose tube designs
Extrusion & sheathing Efficient extruders with multi-zone heaters PE, PVC, or LSZH jackets with tight dimensional control
Protection armoring Steel tape or wire armoring units Enhanced mechanical protection for outdoor use
Profile cooling & curing Water troughs and UV dryers Quicker profile setting with fewer defects
Inline testing Inline geometry and attenuation measurement Real-time quality control and compliance reporting

Compliance using IEC 60794 and ITU-T G.652D/G.657 variants is standard. Cable makers typically certify to ISO 9001, CE, as well as RoHS. These credentials help support diverse applications, from FTTH drop cable manufacturing to armored outdoor runs and data center high-density solutions.

Choosing cutting-edge fiber optic production equipment and modern manufacturing equipment allows firms meet tight tolerances. That decision enables efficient automated fiber optic cable production and positions companies to deliver on scale and quality.

Essential Equipment In Fiber Secondary Coating Line Operations

The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. It protects the glass during handling.

Producers aiming for high-yield, high-speed fiber optic cable production must match material, tension, and curing systems to process requirements.

High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.

Single and dual layer coating applications serve different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. This helps when fibers are prepared for connectorization.

Temperature control as well as curing systems are critical to final fiber performance. Multi-zone heaters as well as Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile as well as reduce variation in excess loss; targets for high-quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.

Key components from trusted suppliers improve uptime and precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws and barrels from Jinhu, and bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, and PLC/HMI platforms from Siemens or Omron provide robust control and monitoring for continuous runs.

Operational parameters guide preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.

Fiber Draw Tower And Optical Preform Handling

The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand using precise diameter control. This step sets the refractive-index profile together with attenuation targets for downstream processes.

Process control on the tower relies on real-time diameter feedback together with tension management. That prevents microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Current towers log metrics for traceability as well as rapid troubleshooting.

Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.

Integration featuring secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. This transfer step supports the optical fiber drawing step feeds smoothly into cable assembly.

Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, as well as geometric tolerances. Such capabilities help manufacturers scale toward high-speed fiber optic cable manufacturing while maintaining ISO-level output quality checks.

Feature Main Purpose Typical Target
Multi-zone furnace Even preform heating for stable glass viscosity Consistent draw speed and refractive profile
Real-time diameter control Control core/cladding geometry while reducing attenuation Tolerance ±0.5 μm
Cooling and tension control Protect fiber strength while preventing microbends Specified tension per fiber type
Integrated automated pay-off Smooth transfer to coating and coloring Synced feed rates for zero-slip transfer
Integrated online testing stations Check attenuation, tensile strength, and geometry Loss ≤0.2 dB/km after coating for single-mode

Advanced SZ Stranding Line Technology In Cable Assembly

The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. That makes it ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.

Precision in the stranding stage protects optical performance. Modern precision stranding equipment uses servo-driven carriers, rotors, and modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.

Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.

Integration with a downstream fiber cable sheathing line streamlines production and reduces handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs with stranding through a Siemens PLC. Cooling troughs and UV dryers stabilize the jacket profile right after extrusion to prevent ovality and reduce mechanical stress.

Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.

Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.

The combination of a robust sz stranding line, high-end precision stranding equipment, and a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. This blend raises throughput while protecting optical integrity and mechanical performance in finished cables.

Fiber Coloring Machine And Identification Systems

Coloring and identification are critical in fiber optic cable production. Accurate color application minimizes splicing errors together with accelerates field work. Advanced equipment combines fast coloring featuring inline inspection, ensuring high throughput and low defect rates.

Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning with secondary coating lines. UV curing at speeds over 1500 m/min ensures color and adhesion stability for both ribbon and counted fibers.

The next sections review standards and coding prevalent in telecom networks.

Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. Such compliance aids technicians in installation together with troubleshooting. Consistent coding significantly cuts field faults and accelerates network deployment.

Quality control integrates modern fiber identification systems into manufacturing lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, together with coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.

Machine specifications are vital for uninterrupted runs and material compatibility. Leading equipment accepts UV-curable pigments and inks, compatible with common coatings and extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.

Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye and other established vendors offer customizable channels, remote diagnostics, and onsite training. That support model reduces ramp-up time and enhances the reliability of fiber optic cable production equipment.

Fiber Solutions For Metal Tube Production

Metal tube and metal-armored cable assemblies provide robust protection for fiber lines. They are ideal for direct-buried and industrial applications. The controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.

Processes depend on precision filling and centering units. These modules, in conjunction with fiber optic cable manufacturing equipment, ensure concentric placement and controlled tension during insertion.

Armoring steps involve the use of steel tape or wire units using adjustable tension and wrapping geometry. That method benefits armored fiber cable line output by preventing compression of fiber elements. The line also keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.

Coupling armoring with downstream sheathing and extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.

Quality checks include crush, tensile, as well as aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing supports long-term reliability in field conditions.

Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.

Buyers should consider compatibility with armored fiber cable production modules, ease of changeover, and service support for field upgrades. Those points reduce downtime and protect investment in an optical fiber cable production machine.

Fiber Ribbon Line And Compact Fiber Unit Production

Modern data networks require efficient assemblies that pack more fibers into less space. Manufacturers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. This approach uses parallel processes and precise geometry to meet the needs of MPO trunking and backbone cabling.

Advanced equipment ensures accuracy and speed in production. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, and shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.

Compact fiber unit manufacturing focuses on tight tolerances and material choice. Extrusion as well as buffering create compact fiber unit constructions with typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, as well as LSZH for durability as well as flame performance.

High-density cable solutions aim to enhance rack together with tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter together with simplify routing. They are compatible with MPO trunking and high-count backbone systems.

Production controls and speeds are critical for throughput. Modern lines can reach up to 800 m/min, depending on configuration. PLC and HMI touch-screen control enable quick parameter changes and synchronization across multiple lines.

Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.

Key Feature Fiber Ribbon Line Compact Fiber Unit Benefit To Data Centers
Line speed As high as 800 m/min Around 600–800 m/min More output for large deployment projects
Main production steps Alignment automation, epoxy bonding, and curing Extrusion, buffering, and tight-tolerance winding Improved geometry consistency with lower insertion loss
Material set Specialty tapes and bonding resins PBT, PP, LSZH jackets and buffers Long-term reliability and safety compliance
Inspection In-line attenuation and geometry checks Dimensional control and tension monitoring Reduced field failures and faster deployment
System integration Sheathing integration and splice-ready stacking Modular units for high-density cable solutions Streamlined MPO trunking and backbone builds

Optimizing High-Speed Internet Cables Production

Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. That ensures optimal output for flat, round, simplex, and duplex FTTH profiles.

Cabling Systems Used In FTTH Applications

FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- and 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.

Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.

Quality Assurance In Fiber Pulling Process

Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, as well as crush as well as aging cycles. This testing regime verify performance.

Key control components include Siemens PLCs together with Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation as well as easier maintenance.

Meeting Optical Fiber Drawing Industry Standards

A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.

Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.

Final Thoughts

Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.

For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing and reduce time to production.

Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension as well as curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable line output line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs together with turnkey proposals, together with schedule engineer commissioning as well as operator training.
